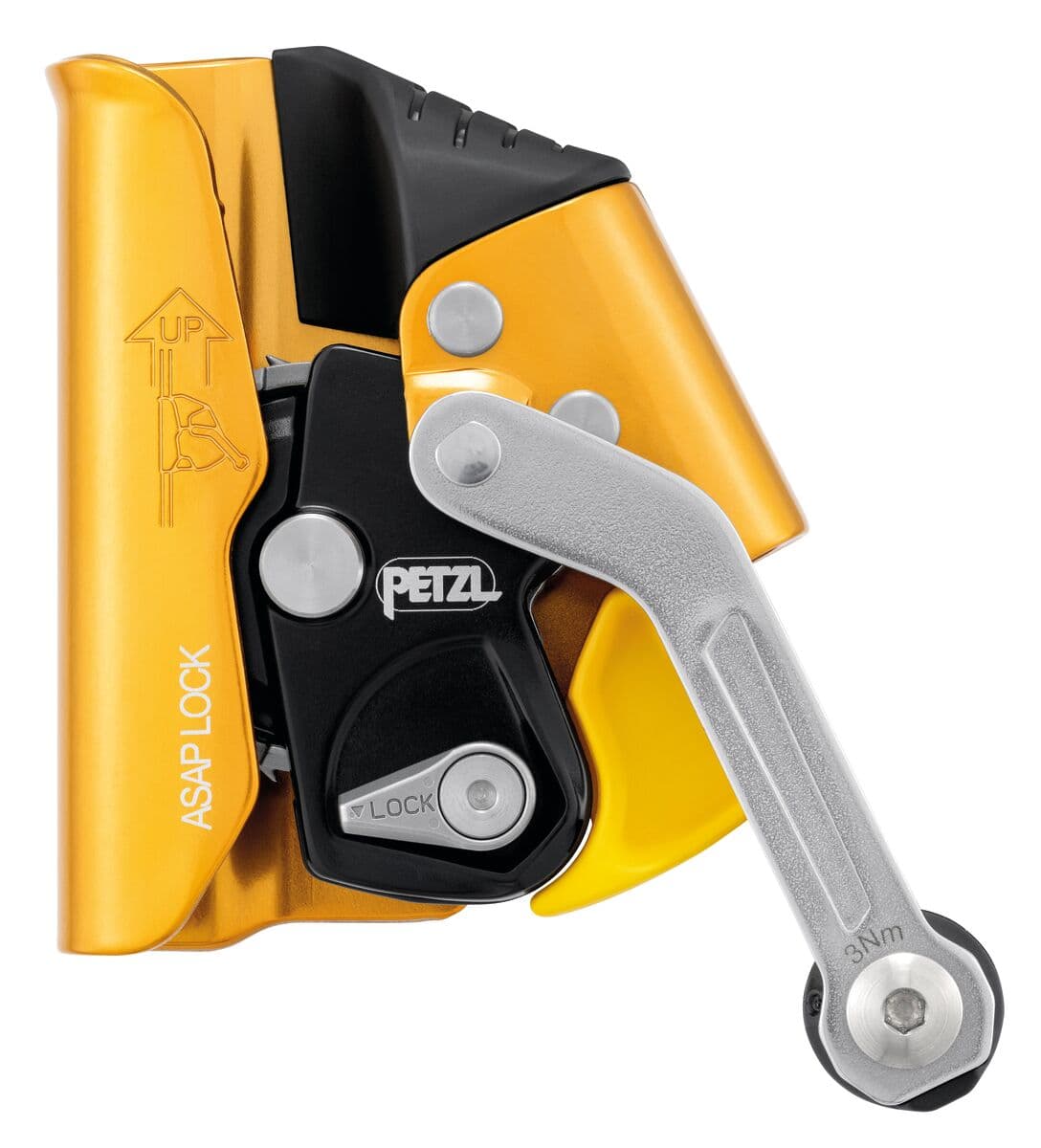

ASAP LOCK WITH LOCKING FUNCTION

An essential component in your fall protection system, rely on the ASAP LOCK for everyday rope access applications. During normal use when moving along the rope, the device trails freely without the need for manual operation. In the event of a fall or uncontrolled descent (exceeding two meters per second), the device blocks the rope and stops the user. The integrated LOCK function allows the user to immobilize the device in order to reduce potential fall distance. The connection arm makes the system drop-resistant, so passing intermediate anchors is easier, and the safety catches simplify installation on the rope. In rescue scenarios, the ASAP LOCK must be used with the ASAP’SORBER AXESS energy absorber.

Mobile fall arrester for rope

• Stops falls and uncontrolled descents exceeding 2 m/s
• Locks onto the rope even if grabbed during a fall
• Works on vertical, horizontal, or angled ropes
• Compatible with 10–13 mm rope diameters
• Toothed wheel effective on frozen or muddy ropes

Compact and easy to use

• Easy to install and remove at any point on the rope
• Moves up and down the rope without manual operation
• Safety catches simplify installation and removal

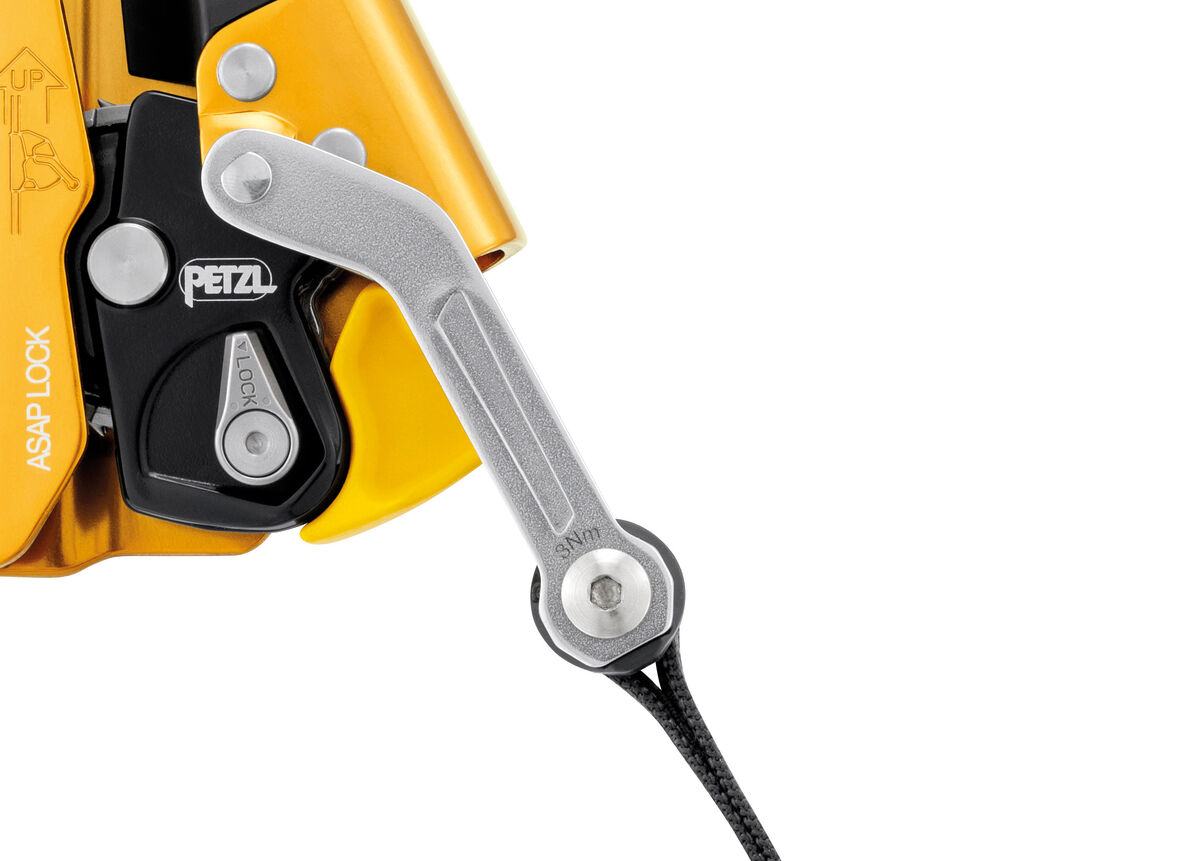

• Connection arm helps prevent dropping when passing intermediate anchors

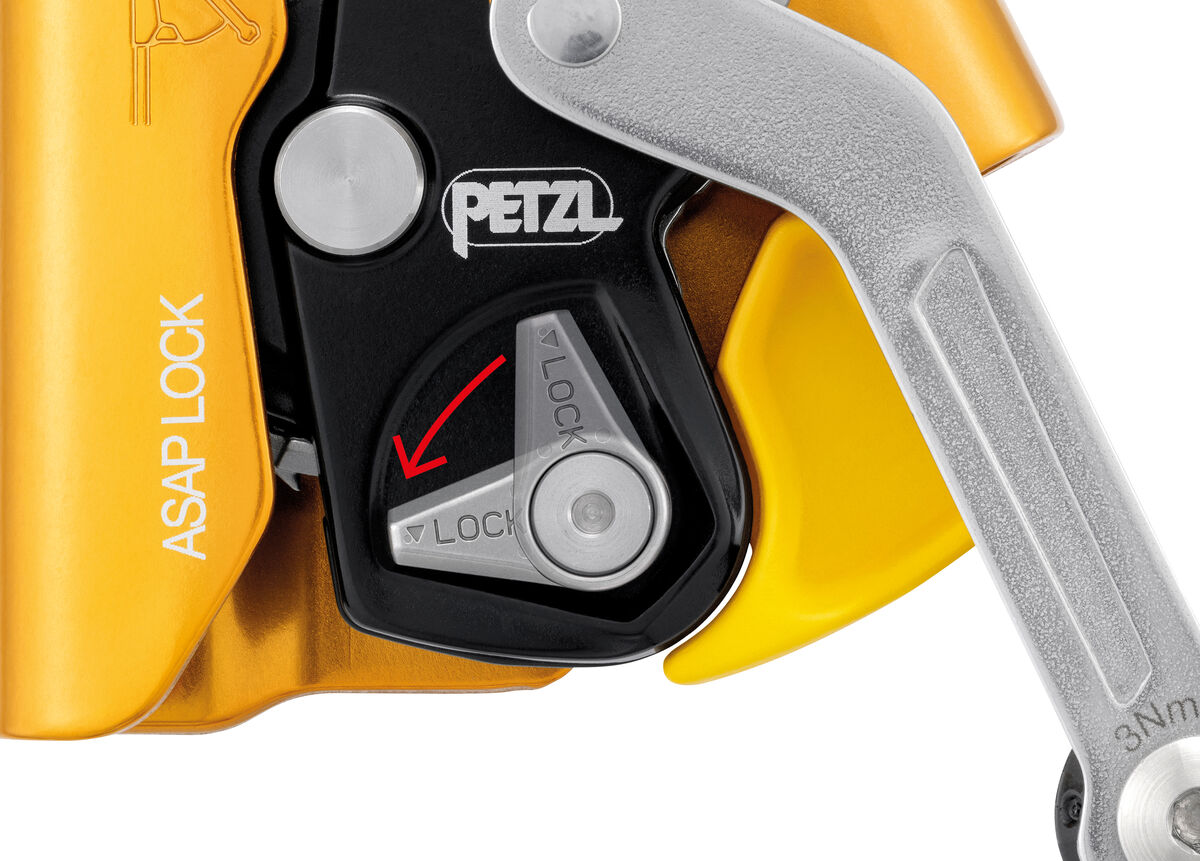

• Integrated LOCK function reduces fall distance and prevents rope from lifting in strong winds

Use in combination with

• ASAP’SORBER AXESS for two-person rescue scenarios (up to 250 kg)
• ASAP’SORBER 20/40 for single-user applications (up to 140 kg)

System use

• Can be used as a backup belay in rope access systems
• Can be used as a primary belay device in fall-arrest systems
• Available in pre-assembled kits with energy absorbers and compatible connectors

Specifications

• Rope compatibility: 10–13 mm

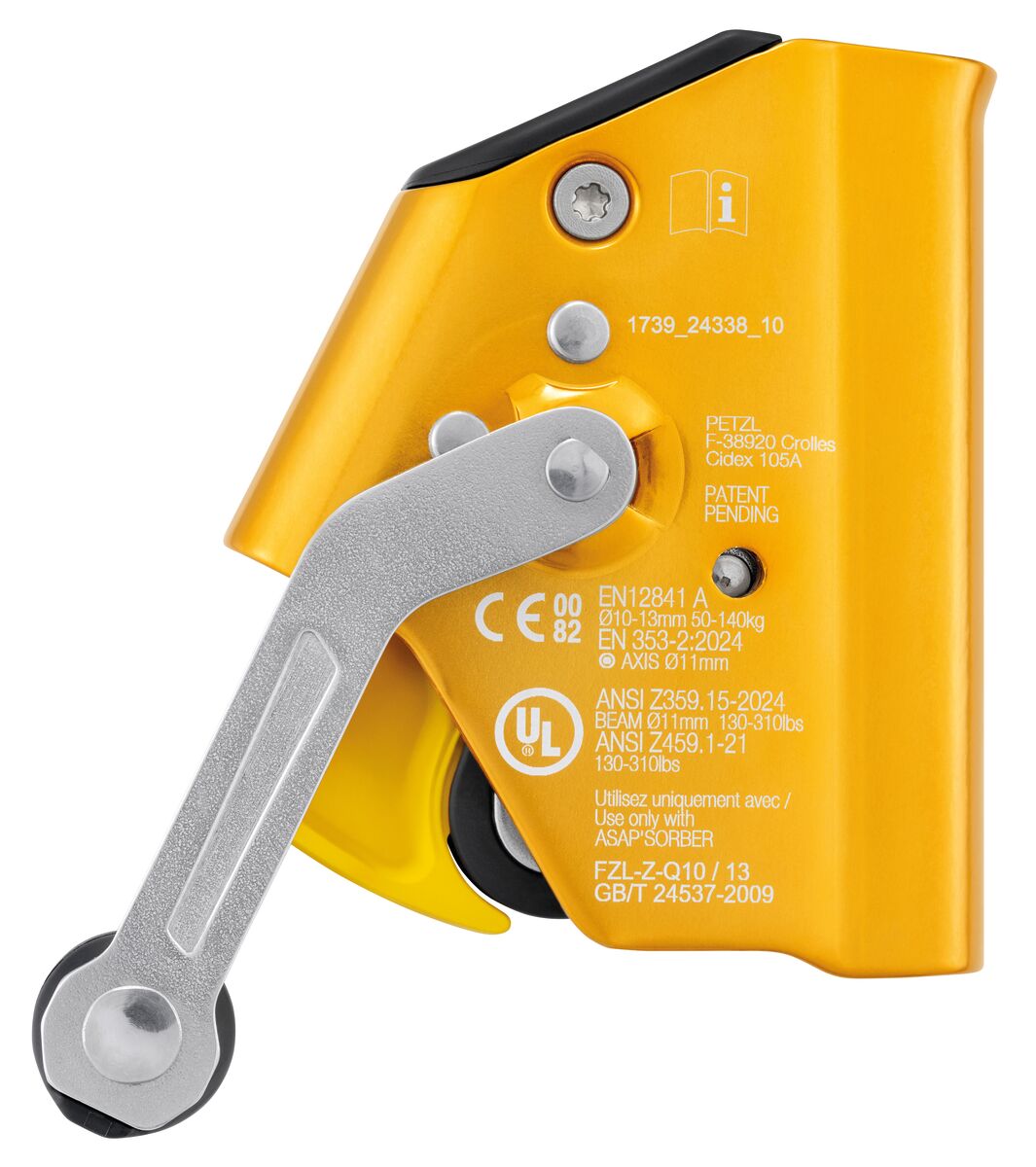

• Certifications: CE EN 12841 type A, CE EN 353-2, ANSI Z359.15, GB/T 24537, XF 494 : FZL-Z-Q10/13
• Weight: 335 g
• Materials: Aluminum, stainless steel, nylon
